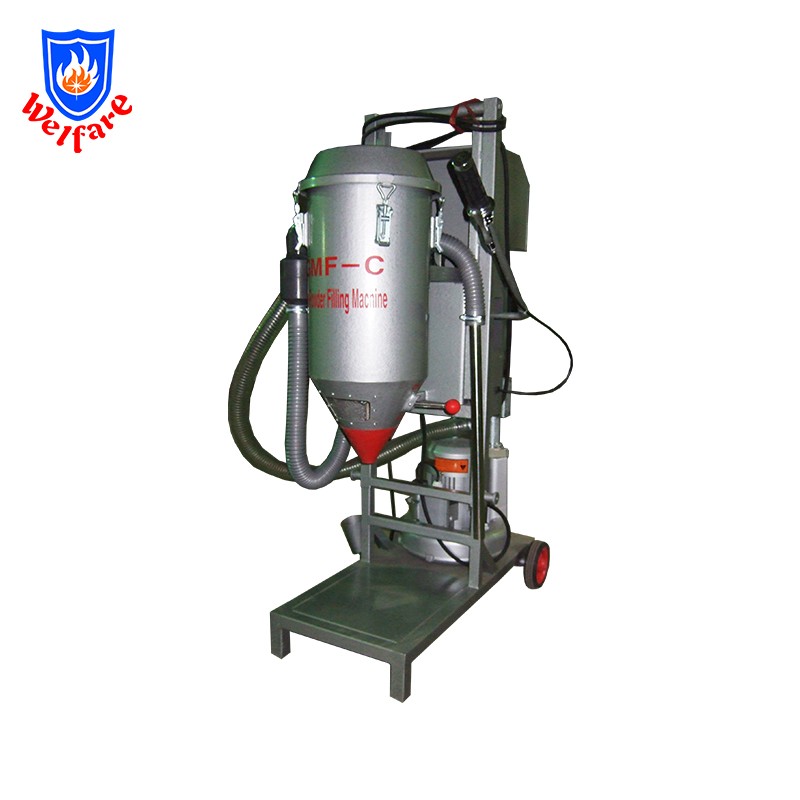

GMF-C Dry Powder Filling Machine for Extinguisher

GMF-C dry powder filling machine isthe improved type C dry powder fill-ing machine based on type A andtype B filling machine of our compa-ny. Not only can it fill portable fireextinguishers, it can also fill handpush type tire extinguishers. does notneed any replacement for the lifetimeof the machine and has automaticcleaning function.

Dimensions (L×W×H)

800×560×1230 mm

Weight

66 kg

Voltage/Frequency

220V/50Hz

Power

0.75 kW

Filling Speed

3 kg/min

Filling Range

20-80 mm diameter

Residual Rate

≤0.05g per 1kg (subtraction weighing)

Operating Instructions

1

Connect to AC220V power source and ensure proper grounding. Verify pump rotation direction (must be clockwise).

2

Position extinguisher at powder holder feed opening, lower holder until tight seal is formed.

3

Use "subtraction weighing method": Place powder source on scale, subtract target fill weight from total weight.

4

Start machine, open feed valve (11), insert suction tube (3). When nearing target weight, reduce suction speed.

5

After filling, step on reversal valve pedal (1) to clear residual powder, then raise holder and remove extinguisher.

6

For preset volume filling: Attach custom funnel to suction tube for measured powder quantities.

Maintenance Guidelines

1

 PREVIOUS：DN15 1/2" 68°C Pendent Automatic Fire Sprinkler NEXT：GMT-C Co2 Fire Extinguisher Refill Machine

INQUIRY

RELATED PRODUCTS

50LBS kg CO2 extinguisher empty Carbon dioxide trolley fire extinguisher

50LBS kg CO2 extinguisher empty Carbon d

1"X50m Manual Rocker Type Fire Hose Reel

1"X50m Manual Rocker Type Fire Hose Reel

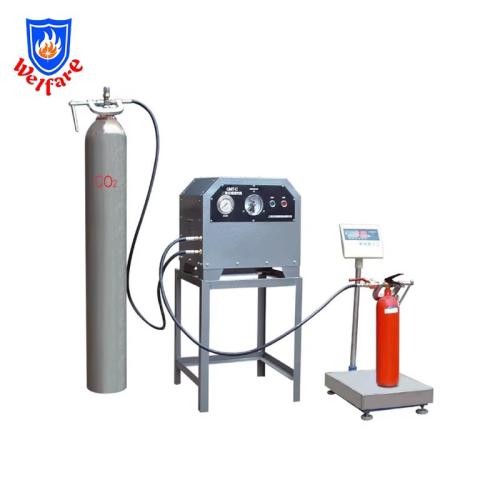

GMT-C Co2 Fire Extinguisher Refill Machine
